Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing

Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing
Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing

큰 이미지 :  Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing

제품 상세 정보:
원래 장소: 광동, 중국
브랜드 이름: Liyi
모델 번호: 리이
결제 및 배송 조건:
최소 주문 수량: 1

Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing

설명
힘 용량: 최대 500kg 정확성: ± 0.5%
모터: 파나소닉 서보 모터 뇌졸중: 850 밀리미터 (맞춤화될 수 있습니다)
해결: 1/250,000 차원: 58x58x145cm
힘: 1PH, AC220V, 50/60Hz 테스트 속도: 0.5 ~ 1000mm/분
테스트 범위: 400 밀리미터 맥스 무게: 90kg
작동 방법: 컴퓨터 제어 운영 시스템: TM2101
전원 공급 장치: 220V/50HZ 또는 110V/60HZ 용량 옵션: 5,10,20,50,100,200,500,1000,2000,5000kg 선택 사항
표준 타격: 800 밀리미터가 (정착물을 포함하지 않습니다)
강조하다:

5KN-100KN Capacity Universal Testing Machine

,

±0.5% Accuracy Tensile Testing Machine

,

850mm Stroke Material Testing Equipment

Liyi 5KN-100KN Electronic Universal Wood-based Panel Tensile Testing Machine
The Liyi tensile strength tester is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack, and fatigue cycling tests on various materials including metals, composites, alloys, plastics, films, elastomers, textiles, paper, board, and finished products.
Design Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Specifications
Capacity 5,10,20,50,100,200,500,1000,2000,5000KG (optional)
Stroke 800mm (not including fixture)
Test Speed 0.5~1000mm/min (keyboard controlled)
Test Range 400mm MAX
Dimension 80×50×150CM
Weight 90kg
Accuracy ±0.5% or better
Operation Method Computer control
Resolution 1/250,000
Motor Panasonic servo motor
Operation System TM2101
Accessories Customized clamps, force sensors, printer, operation manual
Power 220V/50HZ or 110V/60HZ

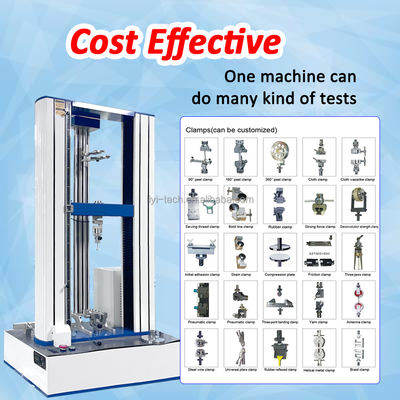

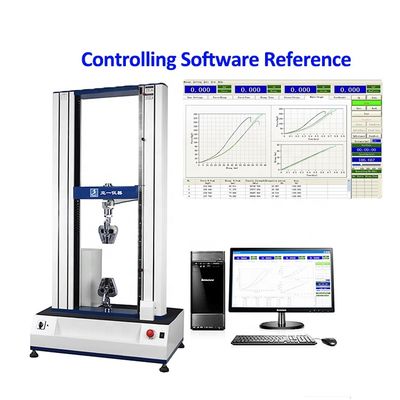

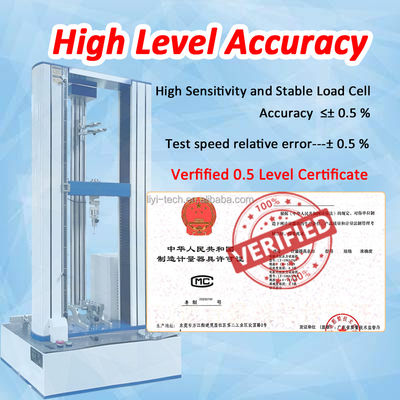

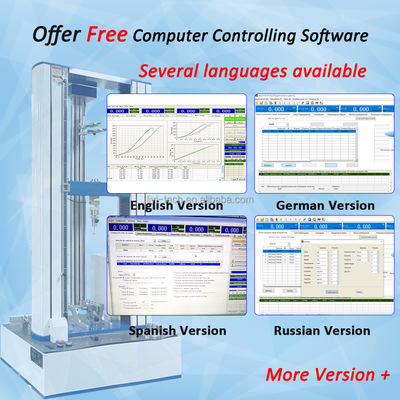

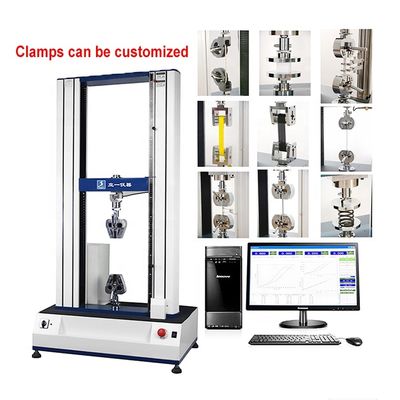

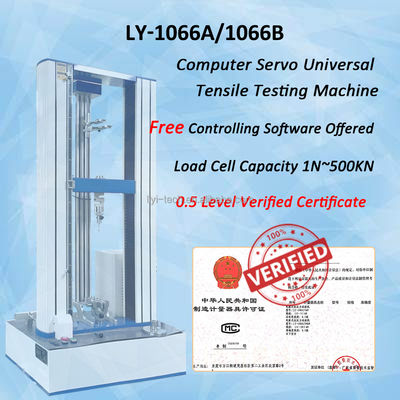

Product Images
Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing 0 Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing 1 Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing 2
Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a complete quality management system, we serve customers worldwide.

Our product range includes simulated environmental testers, plastic and rubber testers, and other material testing equipment. Based in Dongguan, Guangdong province (China's manufacturing center), we also maintain an office in Kunshan, Jiangsu province to better serve Eastern China customers.

We serve customers from over 150 countries and regions, working with international dealers to provide comprehensive testing solutions. Our mission is to help customers establish quality testing labs to ensure product reliability.

Liyi 5KN-100KN Capacity Universal Testing Machine with ±0.5% Accuracy and 850mm Stroke for Material Testing 3
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of China's leading manufacturers of testing equipment including environmental chambers, industrial ovens, tensile testers, and more. All machines come with 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer remote support via email or video chat, with solutions typically provided within 24-48 hours of problem identification.
2. What's the delivery term?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can expedite production for urgent orders.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to customer requirements, including OEM/ODM services with your logo.
4. How can I install and use the machine?
Most machines ship fully assembled - just connect power to begin operation. We provide English operation videos via email and can assist with on-site installation if required.
